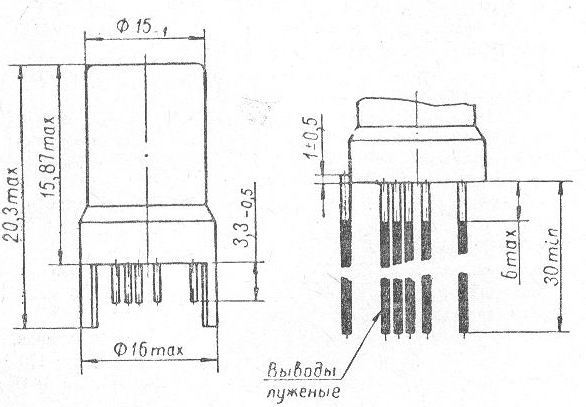

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name6Zh54N
TypePentode
ApplicationUniversal application
Cathode typeoxide, indirect heating
EnvelopeNuvistor-type, metal-ceramic
Mass, g5
Socket typer-2
Filament voltage, V6,3
Filament current, A0,12-0,16
Anode voltage, V27
Anode current, A0,004-0,009
Anode power, W1,5
Grid2 voltage, V27
Reverse grid current, uA0,1
Steepness, mA/V6,0-10,5
Microphonic noise, mV30

See also

1A1P Typeheptode Applicationfreq conversion 1A2P Typeheptode Applicationfreq conversion 1B2P Typediode-penthode Applicationdetection and preamplifying of low-freq 1C11P Typerectifier Applicationscan retreating pulses rectification 1C1S Typerectifier ApplicationHF pulses rectification 1C20B Typerectifier Applicationscan retreating pulses rectification 1C21P Typerectifier Applicationapplication in horizontal scan module 1C7S Typerectifier ApplicationHF pulses rectification 1E4A-V Typelight indicator Applicationindication of voltage level 1Ee1P Typeelectrometric tetrode Applicationlow current measuring
