6Zh5P

Check availability

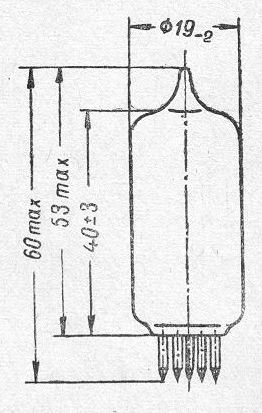

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name6Zh5P
Typepentode
ApplicationHF voltage amplification
Cathode typeoxide, indirect heating
Envelopeglass, miniature
Mass, g12
Socket typersh4
Filament voltage, V6,3
Filament current, A0,425-0,475
Anode voltage, V300
Anode current, A0,005-0,14
Anode power, W3,6
Grid1 voltage, Vminus2
Grid2 voltage, V150
Reverse grid current, uA0,3
Steepness, mA/V8,0-11,0
Microphonic noise, mV150
