RT-53

Check availability

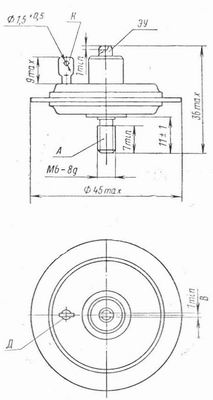

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameRT-53
Typecontrolled
Application fieldpulse light sources ignition
Envelopeceramic
Mass40
Spark voltage, kV0,6-1,6
Spark frequency, Hz10,3
Commutated energy, J1,7
Anode current, A500-1300 in pulse
Life, pulses5*10e5
