RT-57

Check availability

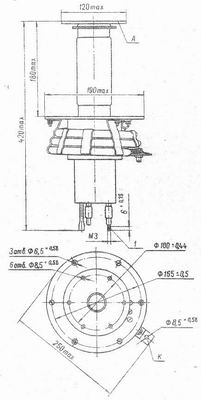

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameRT-57
Typecontrolled
Application fieldpower equipment emergency protection
Envelopemetal-glass
Mass8000
Spark voltage, kV1,8-30
Spark frequency, Hz2
Anode current, A25000 in pulse
Pulse duration, uS500
Life, pulses50000
