RU-68

Check availability

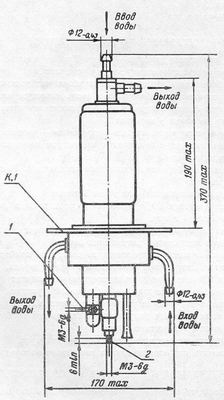

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameRU-68
Typecontrolled
Application fieldapplication as commutator in high power electrohydraulic equipment
Envelopemetal-glass
Mass3000
Spark voltage, kV2,5-25
Spark frequency, Hz10
Commutated energy, J4000
Anode current, A35000 in pulse
Pulse duration, uS25
