RU-69

Check availability

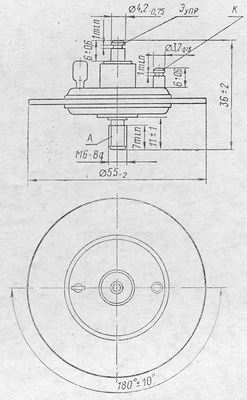

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameRU-69
Typecontrolled
Application fieldapplication as pulse generator for high power light sources
Envelopemetal-glass
Mass50
Spark voltage, kV2,0-4,0
Spark frequency, Hz0,05-10
Commutated energy, J4-250
Anode current, A4000-16000 in pulse
