TR2-85/15

Check availability

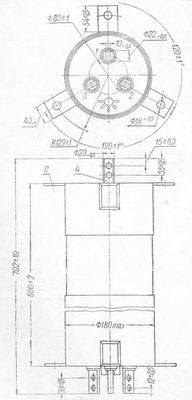

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTR2-85/15
Application fieldin rectifier
Cathode typeOxide, indirect heating
EnvelopeMetal
Mass, g14500
Filament voltage, V5
Filament current, A130
A-C voltage, V15
Max.average cathode current, A85
Grid voltage, Vminus20-0
Max.reverse voltage, kV15
