LI473

Check availability

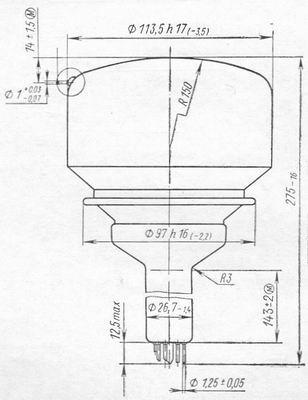

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI473
TypeX-ray vidicon
Application fieldin industrial X-ray equipment
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, AngstremX-ray
Photocathode area, mmdiam 90
Resolution, lines625

See also

LI101 Max.spectrum sensitivity, Angstrem4000-5000 Resolution, lines625 LI17 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines625 LI201 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines625 LI202 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines600 LI203 Max.spectrum sensitivity, Angstrem7000 Resolution, lines900 LI204 Max.spectrum sensitivity, Angstrem4000-5500 Illuminating intensity, Lux5,0-40,0 LI207 Max.spectrum sensitivity, Angstrem4700-5700 Resolution, lines625 LI211 Max.spectrum sensitivity, Angstrem4400-5500 Resolution, lines625 LI212 Max.spectrum sensitivity, Angstrem4000-5000 Resolution, lines600 LI212M Max.spectrum sensitivity, Angstrem400-5000 Resolution, lines600
