LI601

Check availability

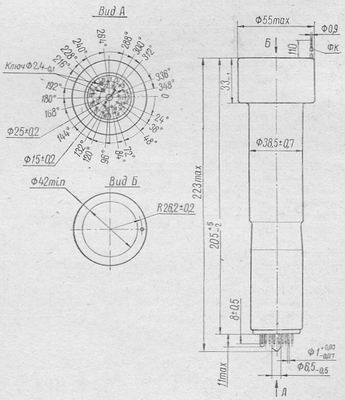

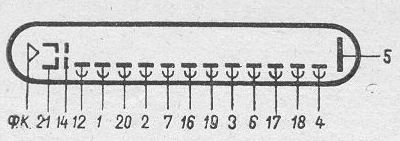

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI601
TypeDissector
Application fieldFast conversion of weak light sygnals to electrical in transmitting equipment
Photocathode typeBismuth-Silver-Cesium translucent
Max.spectrum sensitivity, Angstrem4400-5800
Photocathode area, mm24 x 24
Illuminating intensity, Lux100-1500
