LI603

Check availability

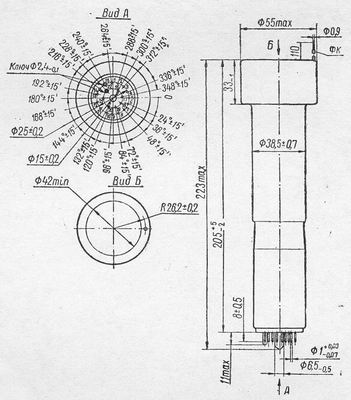

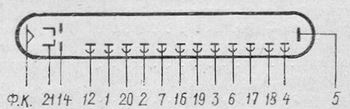

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI603
TypeDissector
Application fieldin one-line industrial TV equipment
Photocathode typeSilver-Oxide-Cesium, Translucent
Max.spectrum sensitivity, Angstrem6500-8500
Photocathode area, mm10 x 32 (hole size 0,06 x 6)
Illuminating intensity, Lux50-1000
