LI801

Check availability

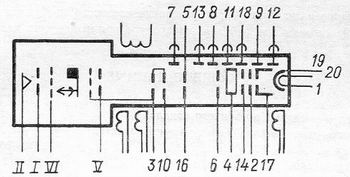

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI801
TypeIsocon
Application fieldimage to electrical sygnal conversion
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4500-5500
Photocathode area, mm24 x 32
Resolution, lines625
Illuminating intensity, Lux0,01
