LI802

Check availability

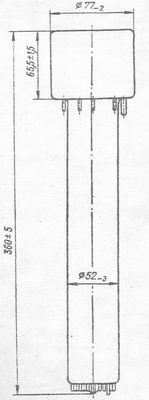

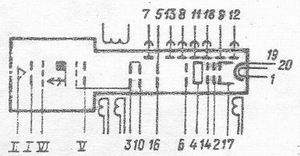

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI802
TypeIsocon
Application fieldimage to electrical sygnal conversion
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4750-5250
Photocathode area, mm24 x 32
Resolution, lines600
